TH-901 Refrigeration & Heat-exchange Equipment Anticorrosive Coating

TH-901 anticorrosive coating is a single component of normal temperature curing coating composed of chemically modified raw paint as resin substrate and key pigment components by various forms

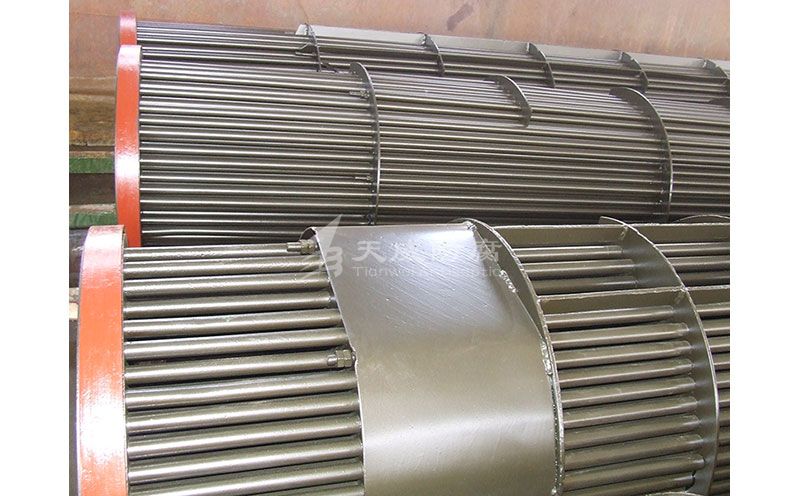

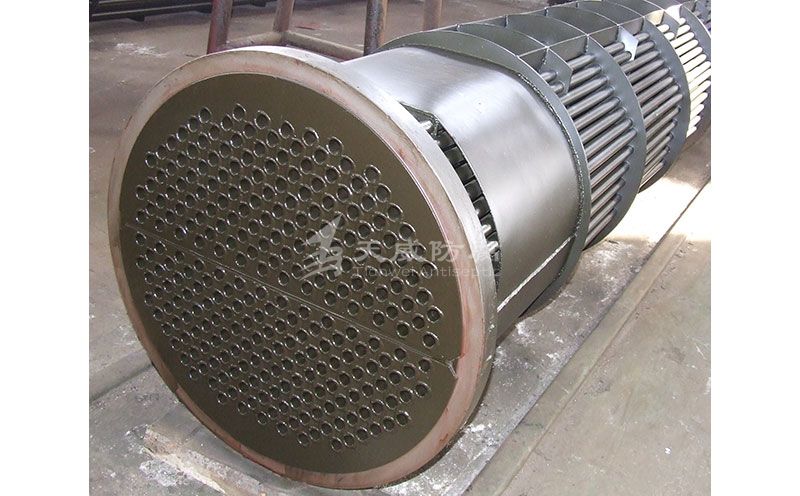

Scope of application: In oil, chemical, fertilizer, pesticide, chemical fiber, marine chemical industry, power plant, steel plant and other industries  large-scale equipment anti-corrosion, oil-water heat exchanger protection, especially 150-300 ℃ range of heat exchangers.

(8h refer to chamber temperature, , 16h room temperature is 1 cycle)


Form 1 Chemical Media Resistant Performance


Media name

Impregnation conditions

Coating condition

Distilled water

Room temperature for one year

No change

Seawater

Boiling 10cycle

No change

20% Citric acid

Boiling 10cycle

No change

Gasoline (90#)

64℃-140℃

10cycle

No change

Kerosene

180℃-210℃

10cycle

No change

Diesel

270℃

10cycle

No change

5% Naphthenic acid

150℃

10cycle

No change

Machine oil

300℃

10cycle

No change

Vacuum pump Oil

300℃

10cycle

No change

Sulfuric acid 20%

115℃

10cycle

No change

Hydrochloric acid 15%

85℃

10cycle

No change

Sodium hydroxide 40%

110℃

10cycle

No change


Form 2 Physical Mechanical Properties


Project

Technical Specifications

Color

Primer: Light Brown

Topcoat: Dark Green

Drying Time 25℃.h

Surface Dry: ≤1

Entirely Dry: ≤24

Viscosity (Coated-4 viscometer) S

25-60

Adhesion, Grade

1

Impact Strength kg.cm

50

Fineness um

50

Roughness um

Primer ≤60, topcoat ≤40

Heat oil-resistant, vacuum pump oil 300 ℃

10 Cycle, pass*

TH-901 anticorrosive coating is a single component of normal temperature curing coating composed of chemically modified raw paint as resin substrate and key pigment components by various forms.


Performance: TH-901 coating has outstanding heat resistance and oil resistance besides acid, alkali, water, seawater and corrosion resistance. Therefore, it breaks through the limitation of durable corrosion resistance of heat exchanger in oil refining industry under inferior conditions of high temperature (150-300 C)+oil (crude oil, gasoline, diesel oil, etc.), and is widely used in oil extraction, refining and oil storage.
